Description
- Brand Name: HobbyLane
- Origin: Mainland China
- Certification: NONE
- Type: Mixers
- Model Number: Sound Card
- Bundle: Bundle 1

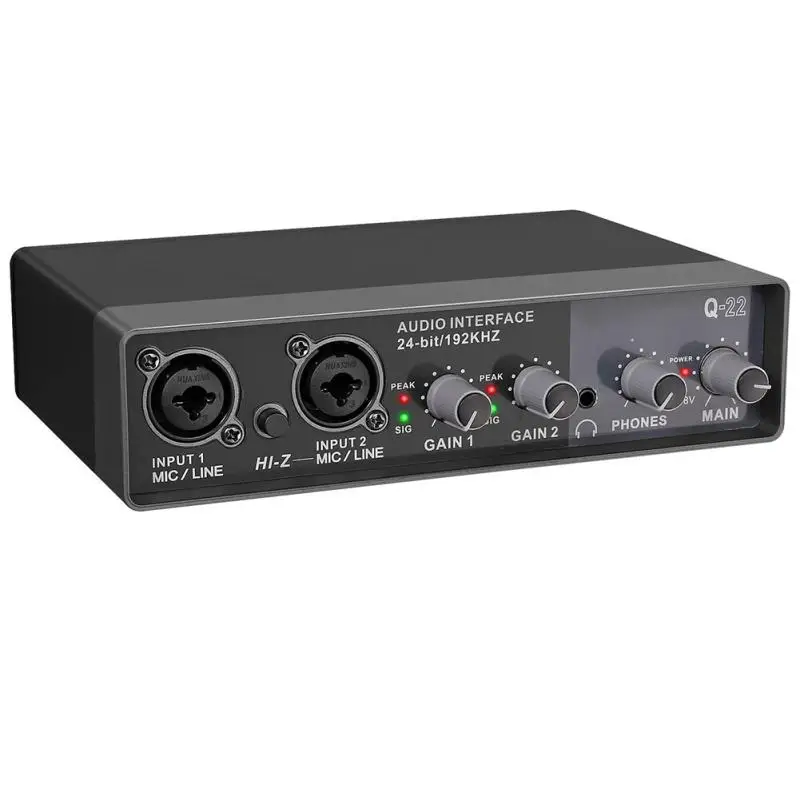

Q-22 Audio Interface Sound Card With Monitor Mixing Console Studio Recording Microphone 48V Phantom Power Sound Mixer
Feature:
1. It also provides volume balance adjustment for input and microphone accompaniment and internal recording function.
2. 24bit/192kHz: The device supports 24bit/192kHz audio resolution, and high-quality conversion is the key to achieving high-quality audio. This can make your recordings clearer and better.
3. Ultra-low-latency list: with a headphone jack that provides ultra-low-latency listening, each port has individual knob controls, you can adjust the appropriate volume at any time.
4. Easy to use: The product does not need to install complex drivers, and the product can be used directly by connecting the supporting USB to the product and computer. (Note: If you want to record, you need to download and use the recording software on your computer. This project supports all free recording software and racks).
Description:
Name: Sound Card
MIC 1-2 input (balanced) frequency response: -1/-1dB, 20Hz – 20kHz;
Dynamic range: 82 dB, unweighted;
Total harmonic distortion + noise 0.03% 1kHz;
Maximum input level: +6 dBu input resistance 4k ;
Gain range: +3dB- +60dB;
HI-Z 2 input (unbalanced) maximum input level: +3.0 dBV;
Input resistance: 1M;
Gain range: 0dB – +40dB;
Line input 1/2 (balanced) maximum input level: +10 dBu;
Input resistance: 18.5k;
Gain range: -10dB – +40dB;
Main output (impedance balanced) frequency response: -1/-1dB, 20Hz – 20kHz;
Dynamic range: 82 dB, unweighted;
Total harmonic distortion + noise: 0.03% 1kHz;
Maximum input level: +6 dBu, 100k input resistance;
Phone maximum input level: 15 mW + 15 mW, 40;
USB technical specifications: speedUSB 2.0 24-bit 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz;
XLR input: polarity 1 ground 2hot wire (+) 3 cold wire (one);
Power requirements: >5W;
Packing list:
1 x Q22 recording sound card
1 x USB power cable
1 x Instructions
1 x Packing box
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don’t mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
