Description
- Brand Name: Bvnine
- Origin: Mainland China
- Model Number: EMX8 12 16 24
- Type: Mixers
- Certification: NONE
- Name: 8/12/16/24Ch Audio Mixer Console
- Mic Input: 8/12/16/24Ch channels
- Group Output: 2
- Feature: LED Screen, USB Input, MP3 player
- DSP: 16 Preset of Effects
- EQ Input: 4 EQ for each input channel
- EQ Output: 7 bands EQ for stereo output
Details:

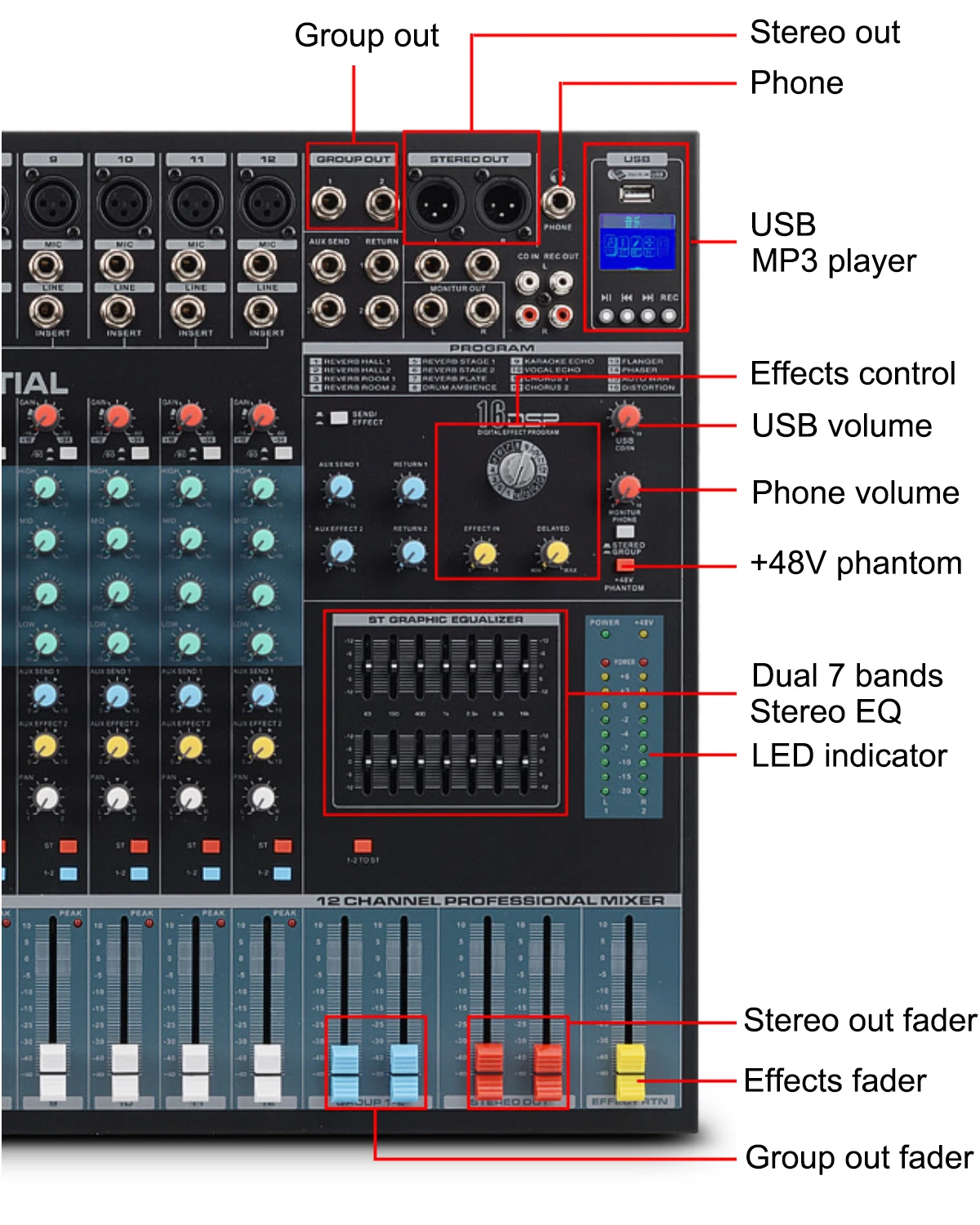

* Features:

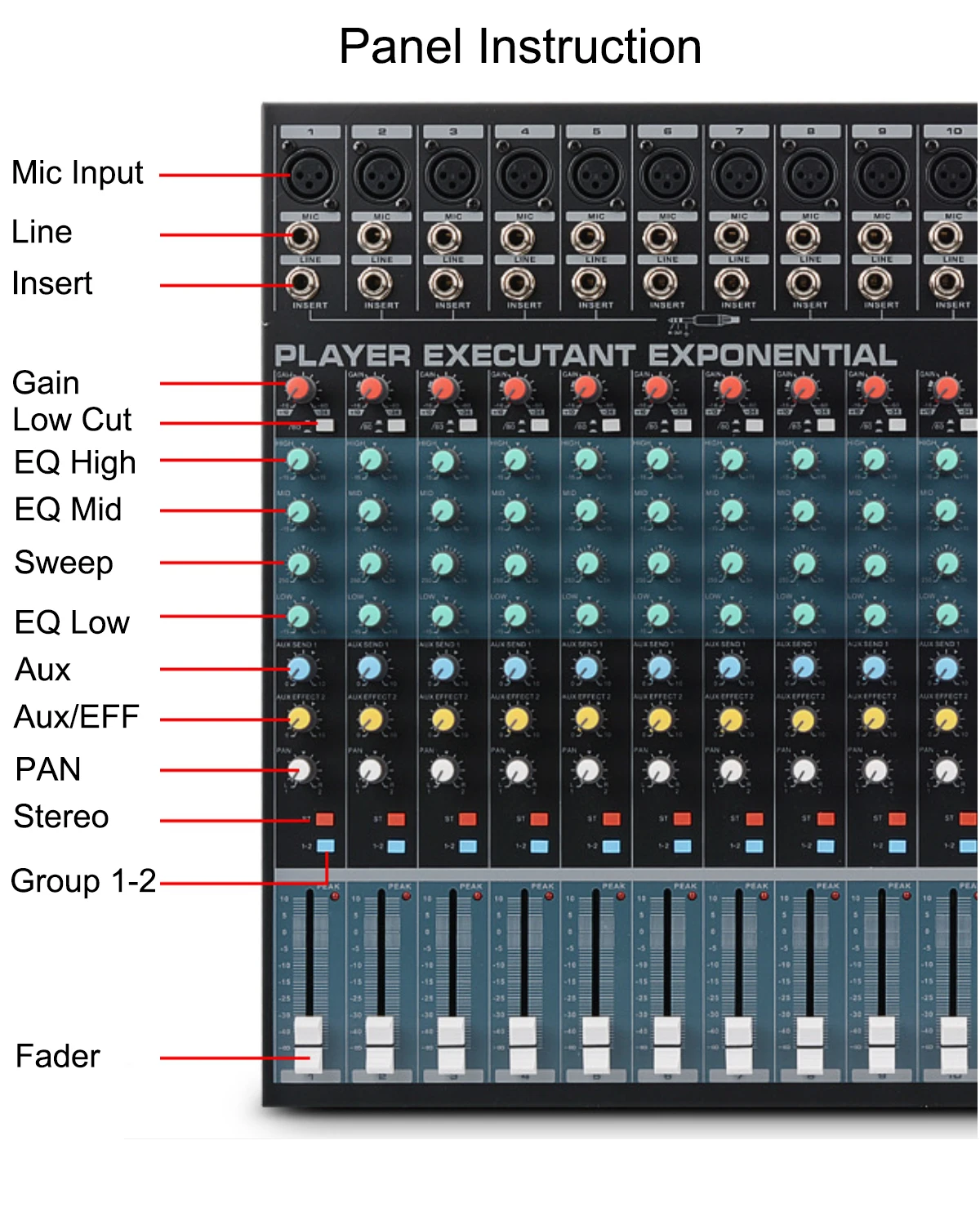

8/12/16/24 channels mixer( mic input), each channel has 3 EQ+MF.

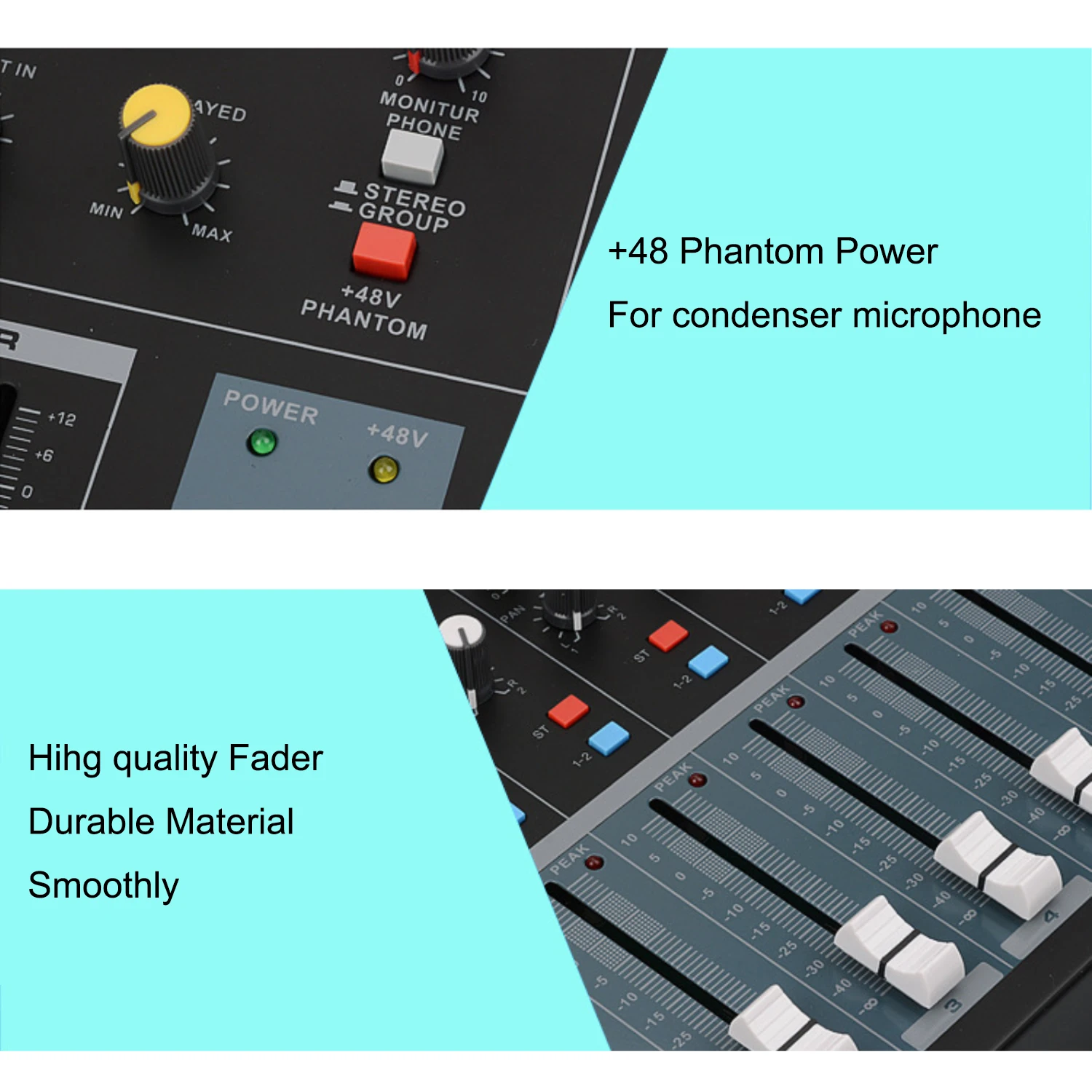

High-performance microphone amplifier with phantom power (+48V).
Double returning input, double Aux group output.
Double Aux sending（EFFECT/AUX2）
Dual 7 bands Equalizer for stereo output.
Built-in DSP 16 effects.

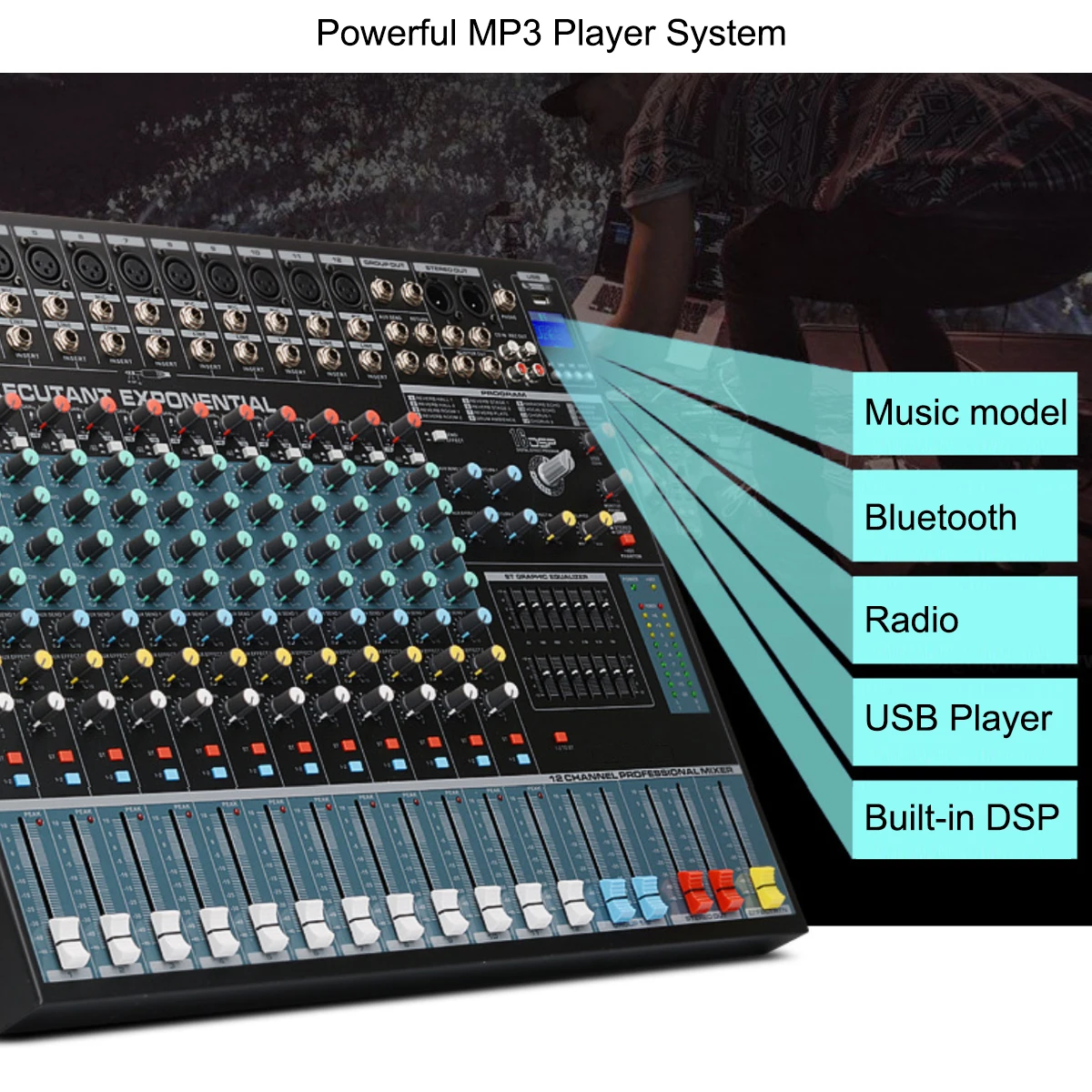

Built-in MP3 player (Play/Up/Down/System setting)
*Technical Parameters:
Total Harmonic Distortion：0.01%+4dbu 1khz
Frequency Response：10hz~60khz±3db
Microphone Input:+10db~-60db
Line Input:+10db~-4db
Maximum Output Level：+22dbu
Signal Noise Ratio：-112db
Bus Noise: Noise(20Hz-20KHz measurement bandwidth)
Audio Mixing:MIX@MAX faders down<-85dB)
Crosstalk Between Channels:>96dB
Crossover Fader Position:>96dB
Aux Send Port:>86dB
Output Level Meter:L/R mix output level is 12 segment of LED indicator

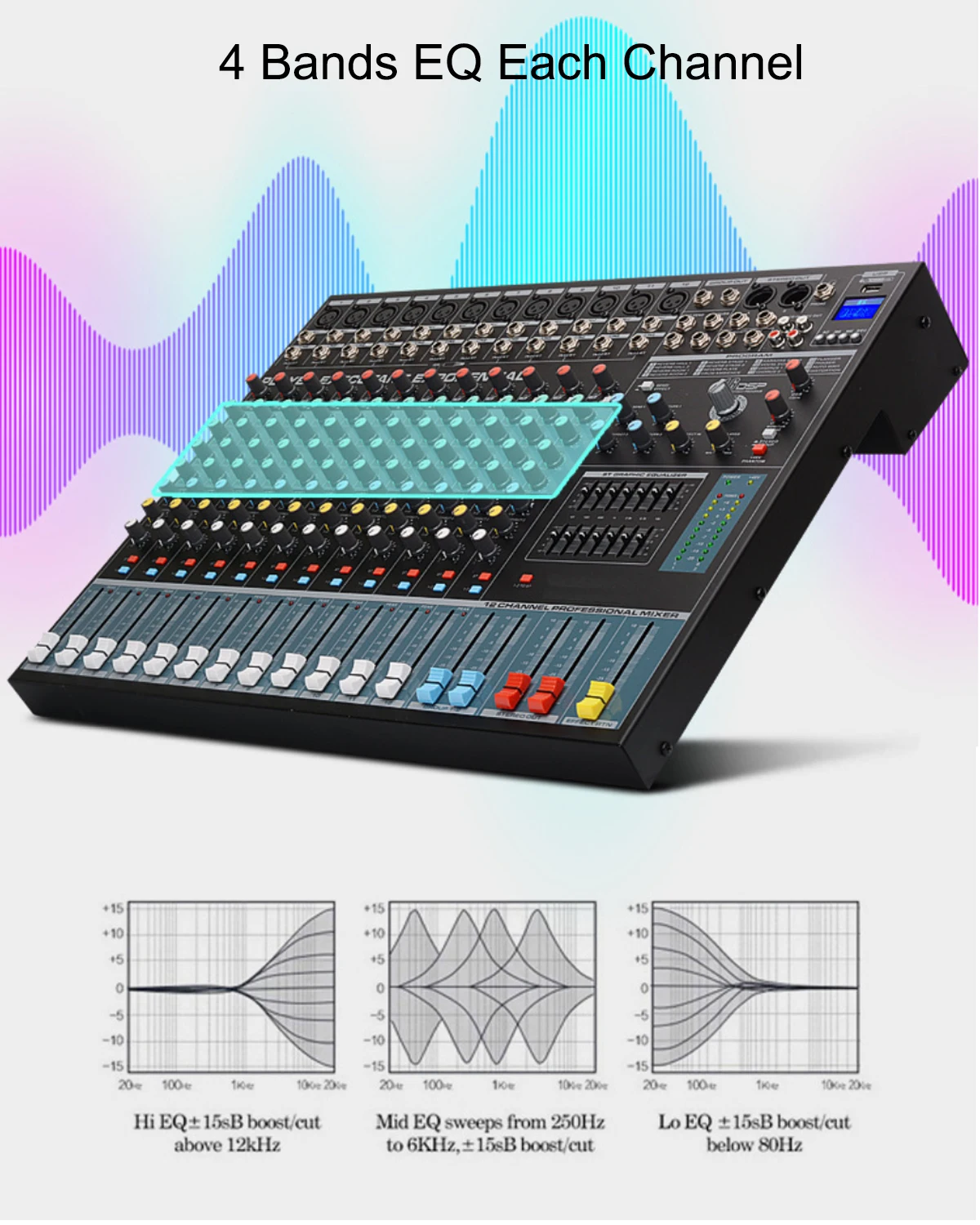

EQ High：12khz±15db
EQ Mid：250hz~6khz±15db
EQ Low：80hz±15db

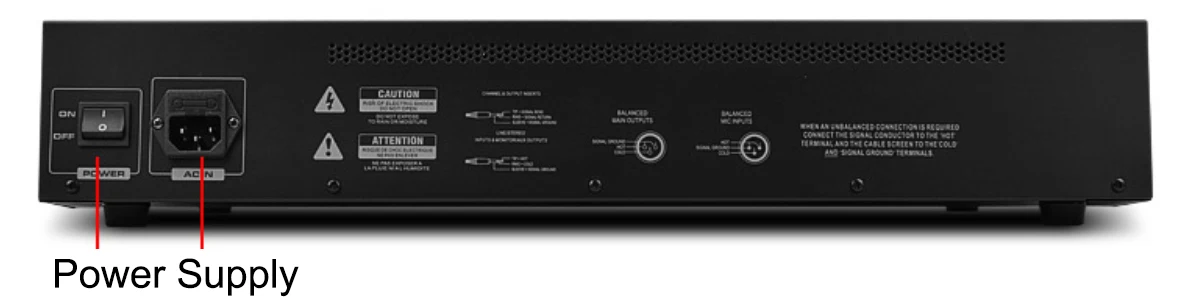

Power: AC input 100-240V 50/60Hz
Power consumption：65W
Please note that:
We offer 4 models for your option.
(1) 8Channels audio mixer EMX8-USB
(2) 12Channels audio mixer EMX12-USB
(3) 16Channels audio mixer EMX16-USB

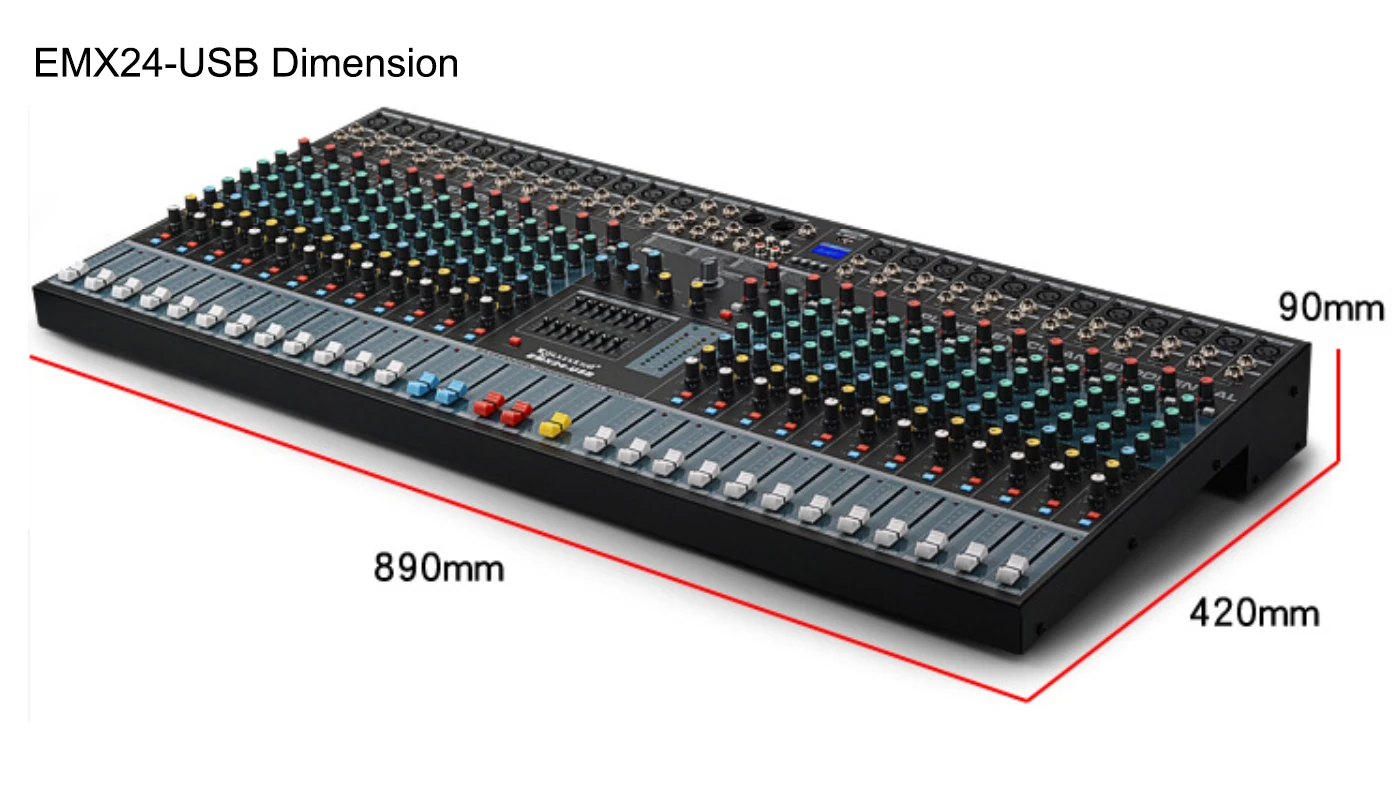

(4) 24Channels audio mixer EMX24-USB
Please select carefully before you buy!!!
Thanks very much!!!
